Key facts

Class

Class

5

Size

Size

27.75m²

Filtration

Filtration

HEPA

Air changes per hour

Air changes per hour

195 air changes per hour at a speed of 0.45m/s in the main area

What did the client need?

Our client required a cleanroom to carry out microbiological analysis, where any contamination could compromise the results, and render the tests ineffective.


How did the client benefit?

The dedicated areas mean that each process had an area designed specifically to meet its requirements and so processes and protocols were facilitated.

The cleanroom A/C allows testing to be all conducted in a consistent controlled environment.


How did we help the client?

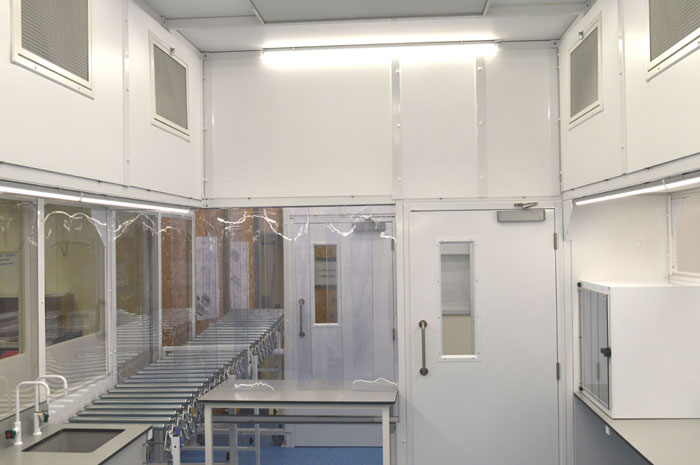

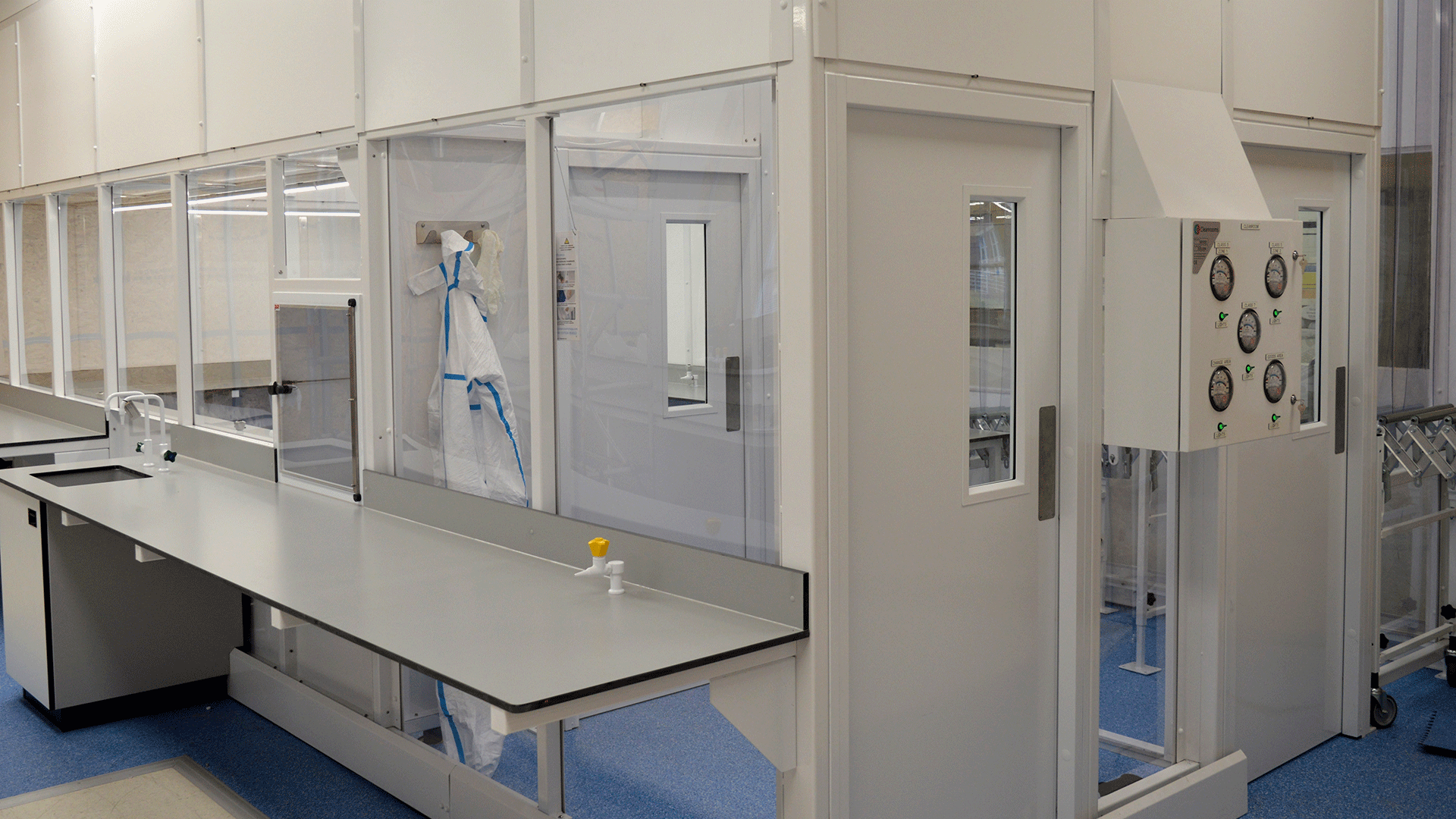

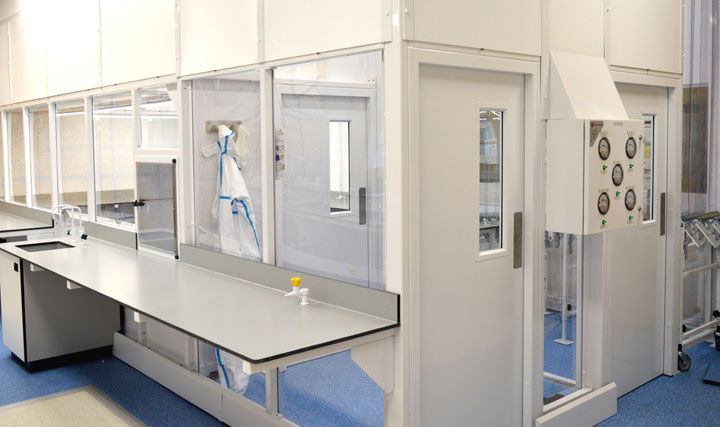

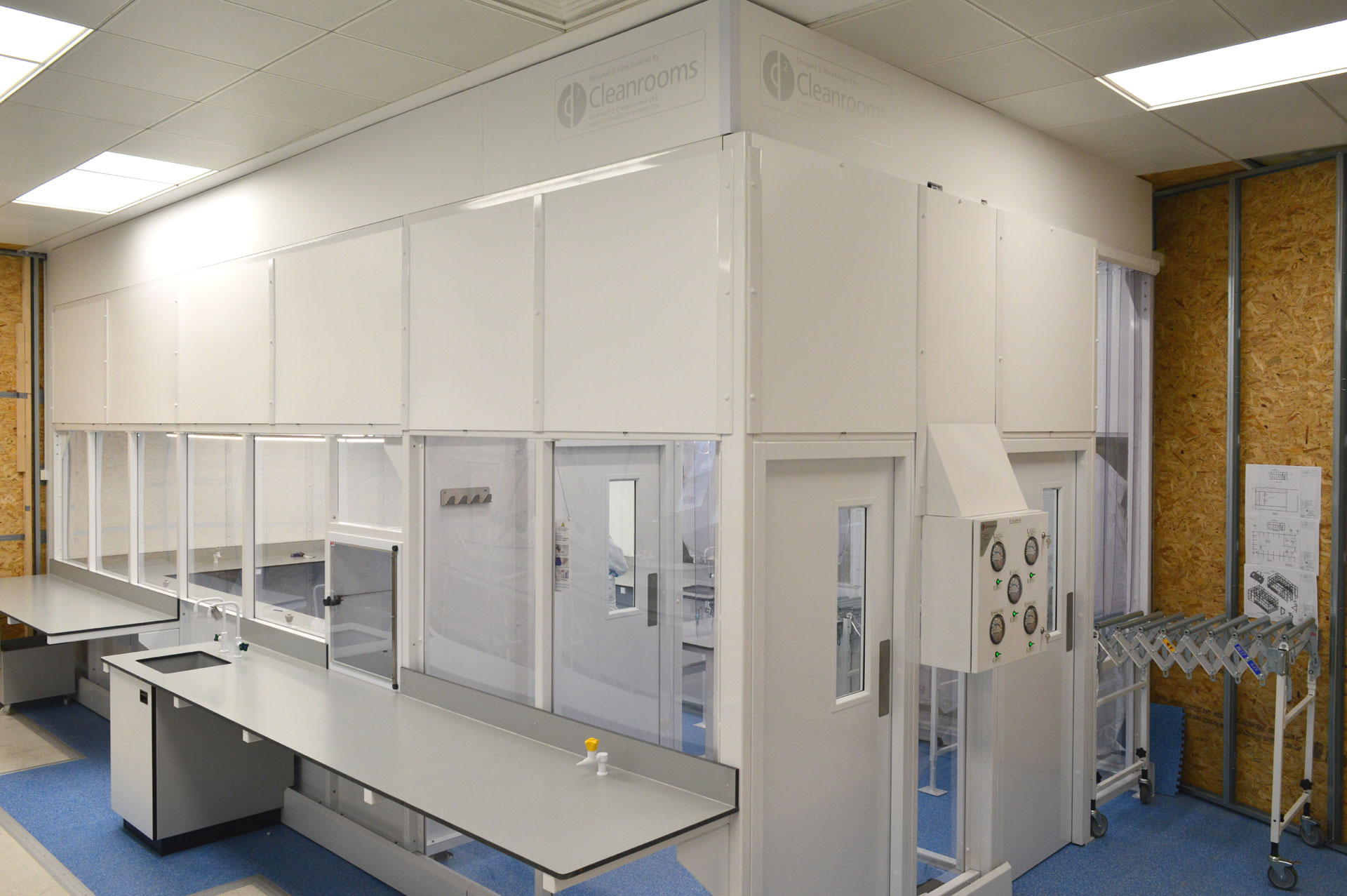

We designed a cleanroom with a dedicated ISO Class 7 main area, with ISO Class 5 laminar flow areas, plus a goods and change area.

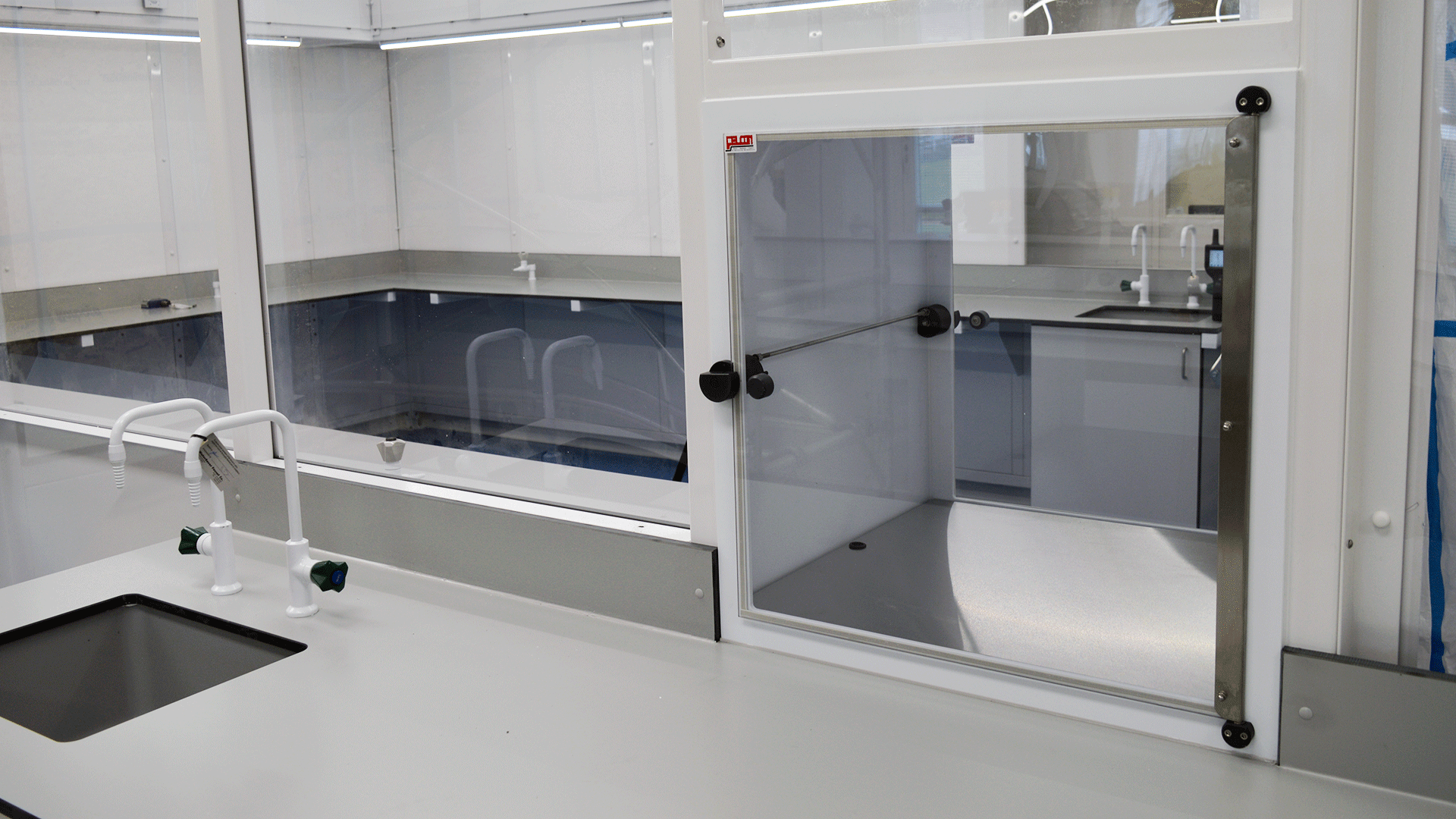

The cleanroom features air conditioning, as well as integrated Trespa benching with integrated lab sinks and a transfer bench from goods to main areas to facilitate easy transfer.
