Key facts

Class

Class

8

Size

Size

60m²

Filtration

Filtration

HEPA

Air changes per hour

Air changes per hour

7no. air changes per hour at an air speed of 0.45m/s in the main area

What did the client need?

Our client needed a showpiece cleanroom to provide a controlled environment for the ultra-modern plant in Goodwood, UK.


How did the client benefit?

We worked to the URS provided and created a panel system cleanroom with temperature and humidity control. This stable and repeatable environment was intended for the production of dashboard components.

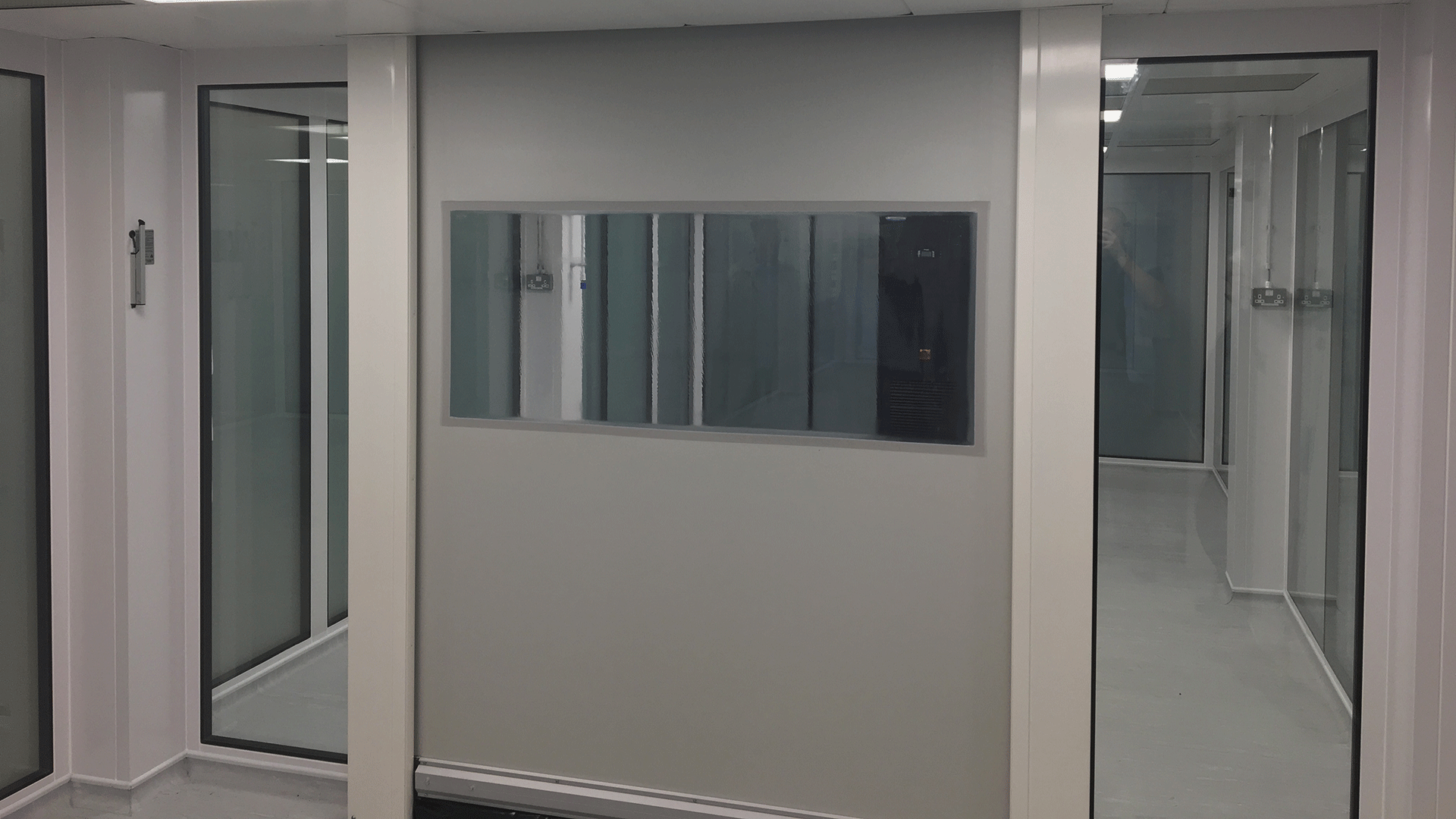

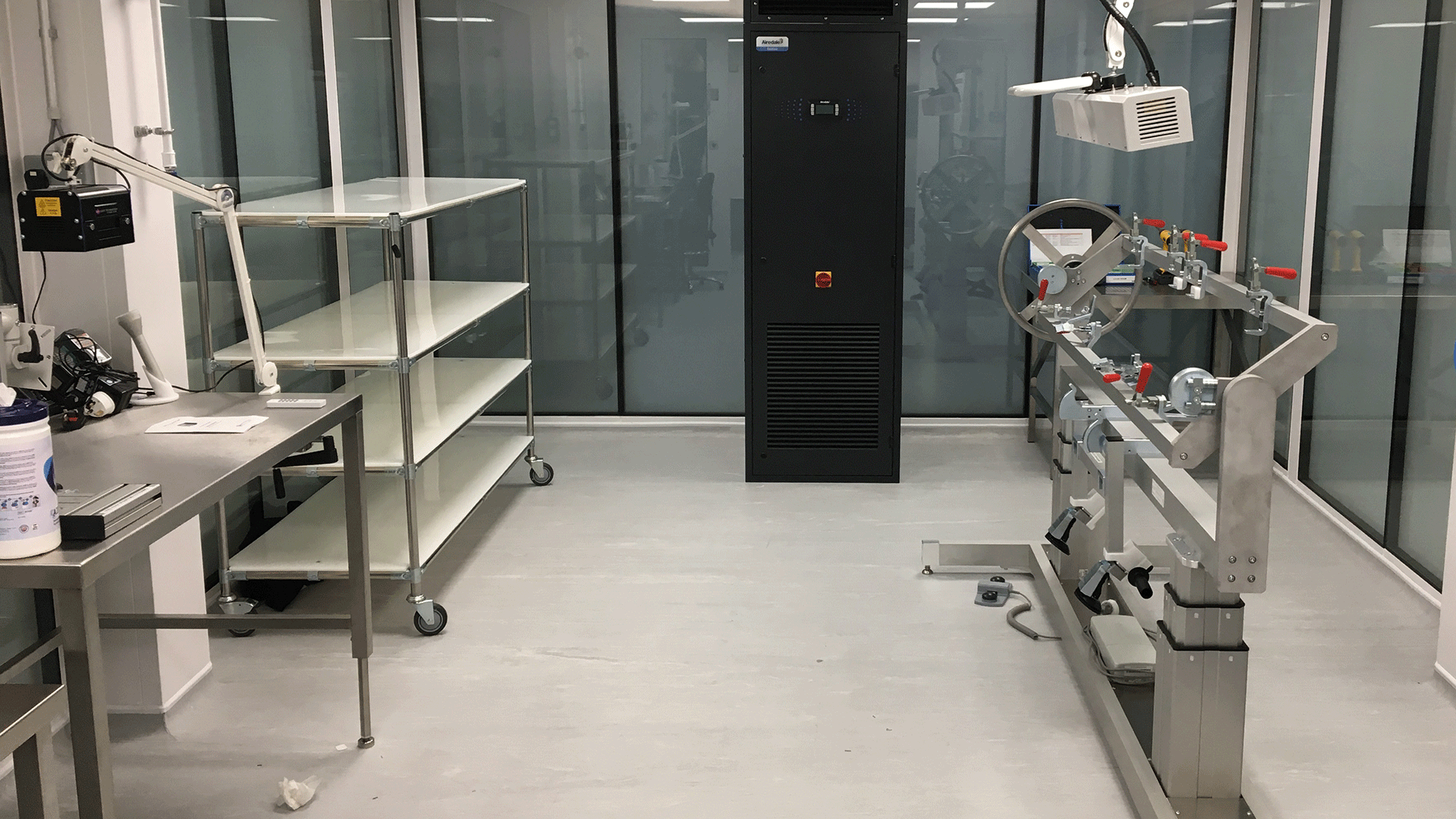

We used a closed control unit to control the temperature and humidity and our Development Team produced UV inspection lamps on a 3 point arm for the high precision work. The cleanroom also features interlocking roller doors, to protect the integrity of the cleanroom during entrance and exit.


How did we help the client?

We created a cleanroom that was equally functional and elegant in design – much like their brand. The cleanroom was designed, not only for high precision performance, but also to be an aesthetic fit in the immaculate, high end factory.

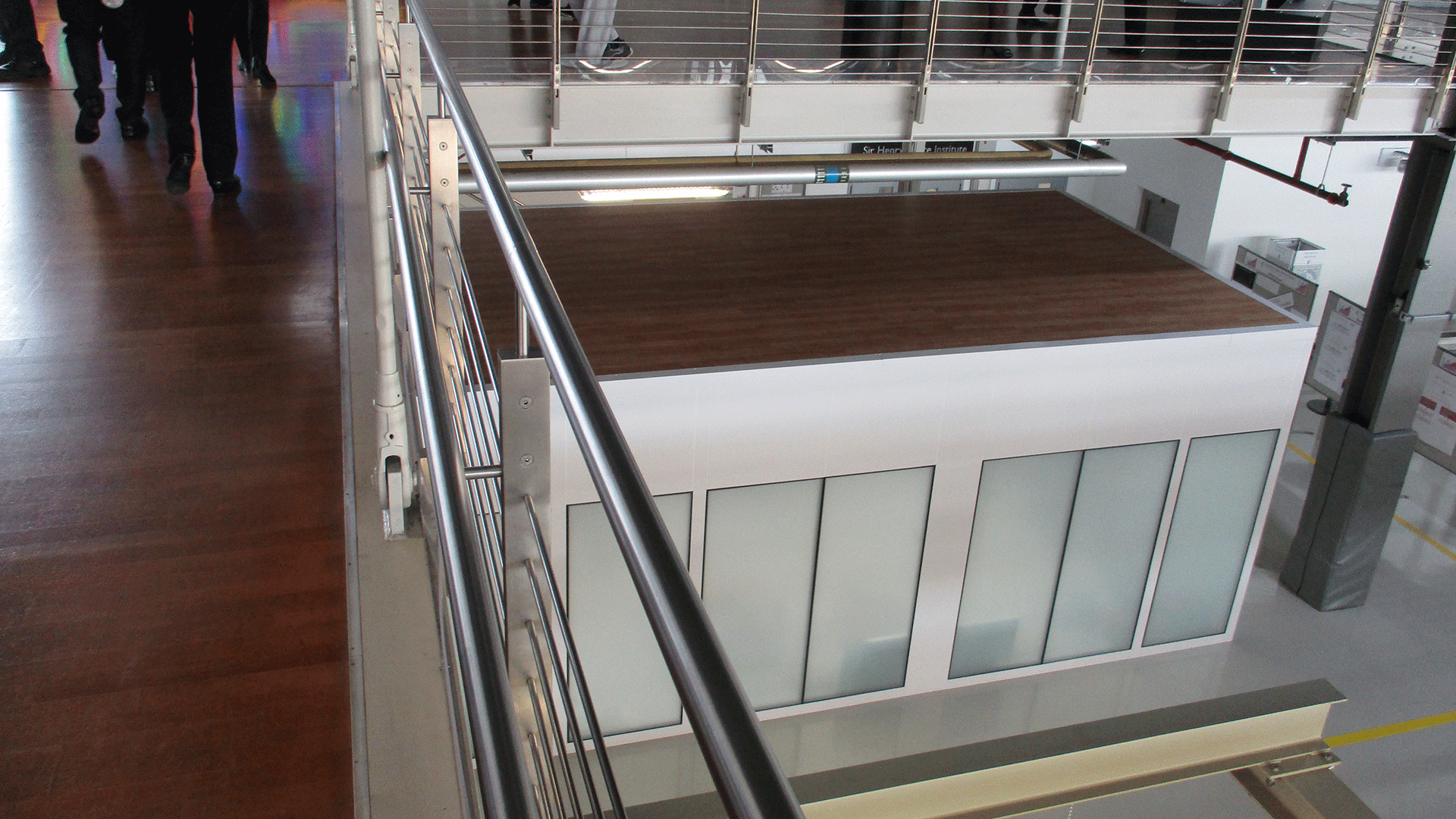

This was enhanced by high attention-to-detail design features - such as a wooden effect roof, which matched the floor on the mezzanine from which the cleanroom would be viewed during factory tours.
