High grade pipe fabrication cleanroom with internal pods
Connect 2 Cleanrooms built an ISO class 6 softwall cleanroom with HEPA filtration and ISO class 4 enclosed weld pods for high grade pipe fabrication.
Key facts
ISO Class 6 with Class 4 Zones
ISO Class 4 at the critical points of production
Process-built layout
Fully-enclosed prep and weld pods use 100% coverage of ULPA filtration
48m²
Main cleanroom and change area
Cleanroom LED lighting
Plus jigsaw flooring
The Client
MSL Engineering Ltd is a leading mechanical engineering contractor. They required a cleanroom with critical levels of control for high-grade pipe fabrication.
Process-led Design

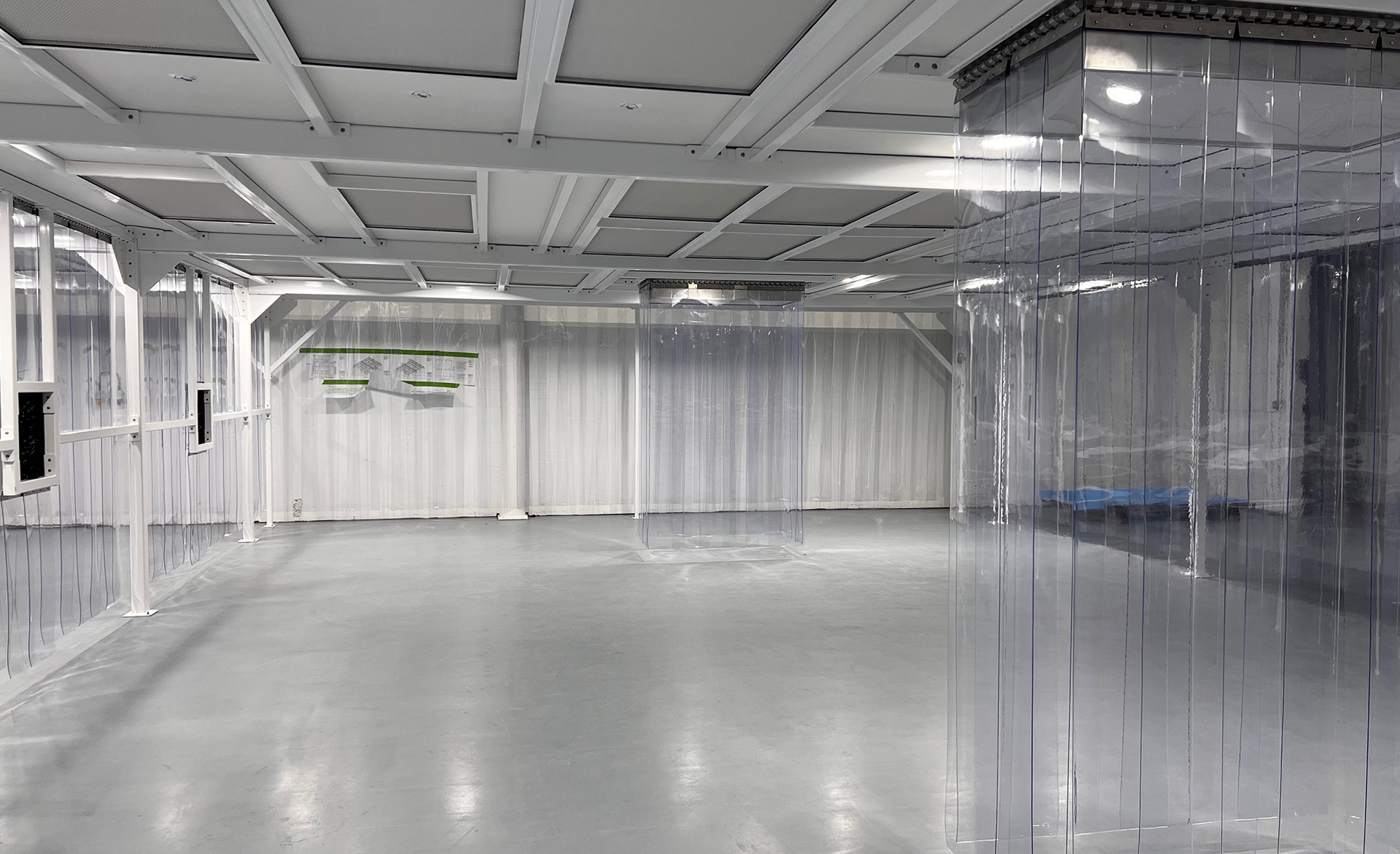

C2C’s team designed a softwall ISO cleanroom with zones and pass-through windows. This supports MSL Engineering’s process flow as the pipes, which are up to 3m in length, can be fed through the classified areas.

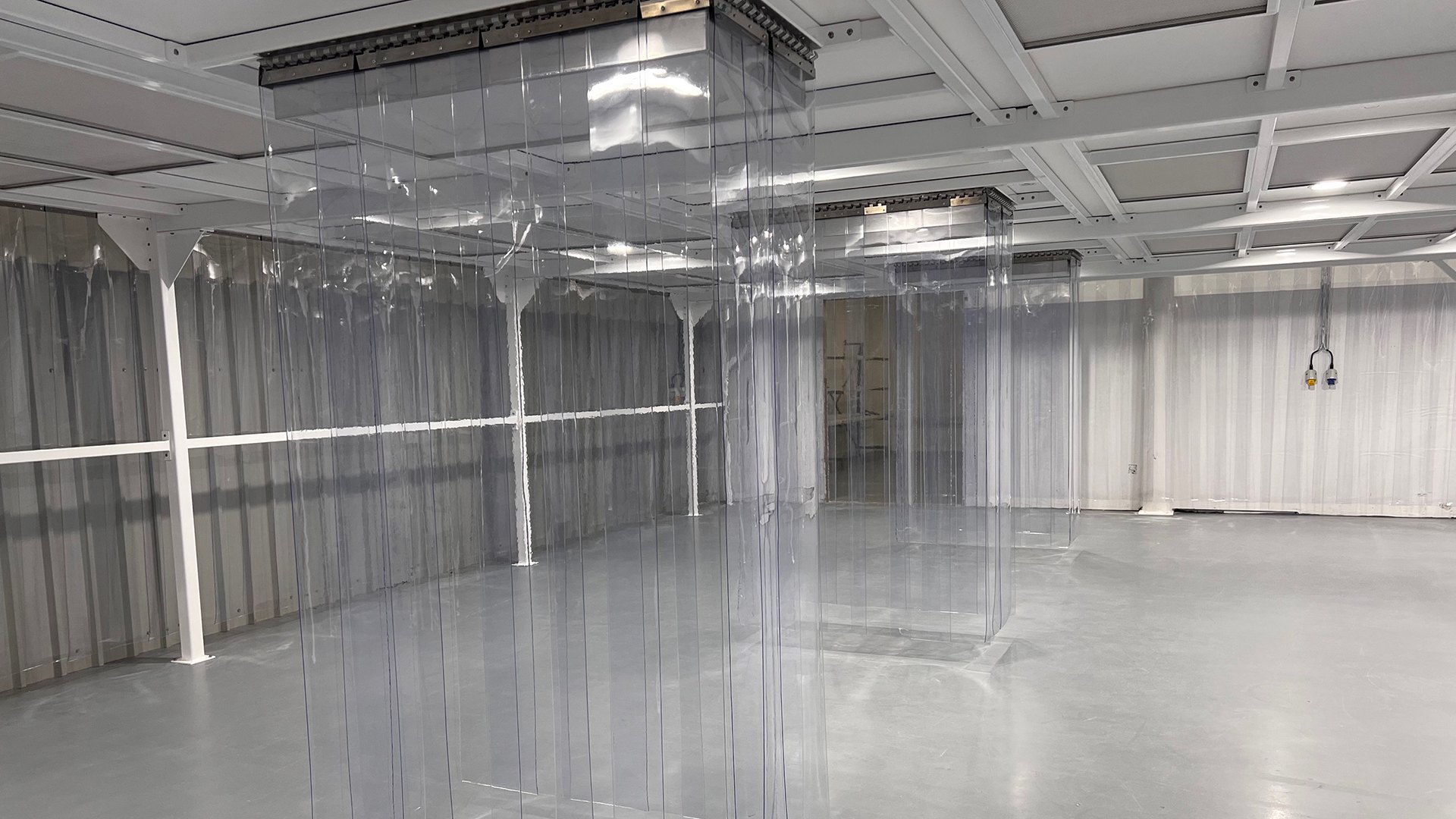

The main areas achieve levels of particulate control to meet ISO 14644:2015 Class 6 through HEPA filtration. Fully-enclosed prep and weld pods use 100% coverage of ULPA filtration to deliver particulate control to meet ISO Class 4 at the critical points of production.
Additional Features
A change area was also incorporated into the footprint of the cleanroom, providing a dedicated area for operators to don cleanroom apparel, supporting best practice gowning protocols.
Cleanroom LED lighting provides optimal lux levels for operations and jigsaw flooring was used to upgrade the existing factory floor to be cleanroom compatible.
“Bringing our concept from initial idea to design to installation was made simple from a very experienced and accommodating team at C2C. The final product delivered was to a very high standard and MSL are very happy with the product delivered.” MSL Production Director
