Key facts

Class

Class

7

Size

Size

74m²

Filtration

Filtration

HEPA

Air changes per hour

Air changes per hour

82 at an air speed of 0.45m/s in the main area

What did the client need?

The opportunity to expand L'Oreal's Egypt plant's cosmetics manufacturing portfolio to include cosmetic skin care products, proved to be technically complicated given the Egyptian Ministry of Health classifying such products as requiring pharmaceutical production standards and environments.

Given that the factory was not designed to pharmaceutical standards they needed a customised, unique and economical solution to take advantage of this growth opportunity.

L’Oreal required cleanrooms to be built around existing production machinery, across ground floor and mezzanine locations, which we were able to provide through our modular cleanroom solutions and advanced in-house design capabilities.


How did the client benefit?

The modular cleanrooms optimise energy consumption by creating localised clean environments on L’Oreal’s large factory floor. The cleanrooms are energy efficient to run as only the required space is converted to a clean environment.

As they are easily extended, there is no limitation for future development. All main cleanroom areas achieve particle counts according to ISO 14644-1 Class 7. To allow L’Oreal’s required classification of the transfer and change areas, they were fitted with ducting and extraction units to encourage the correct cascade of clean air flow.


How did we help the client?

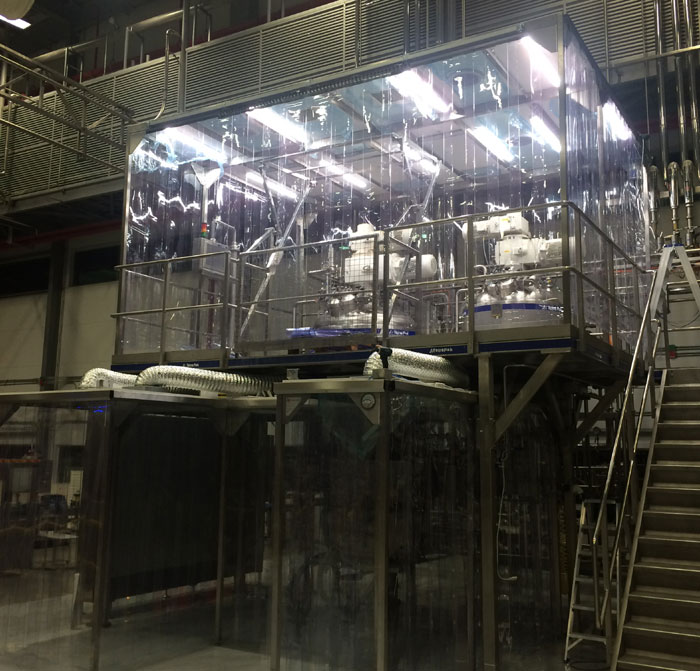

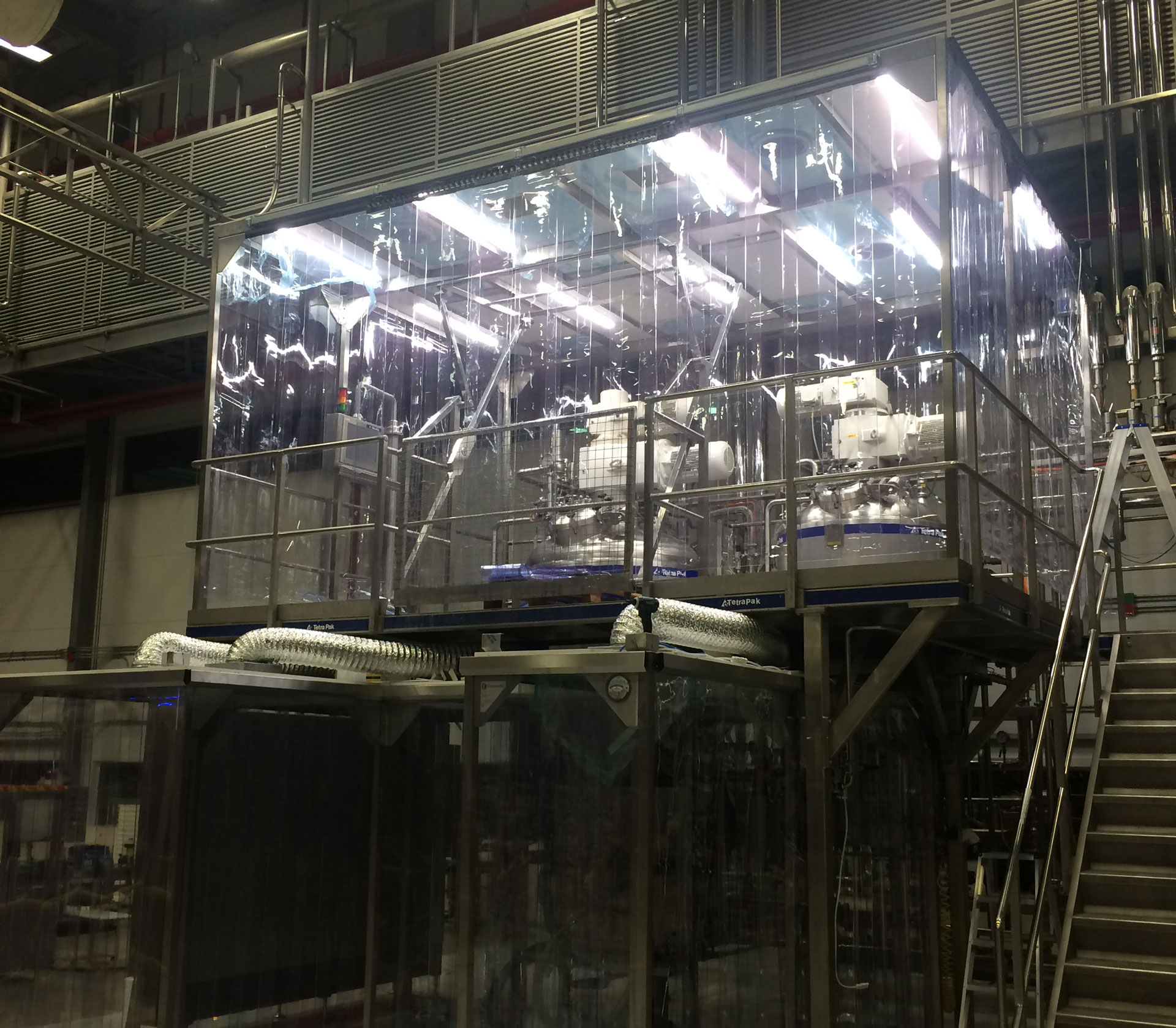

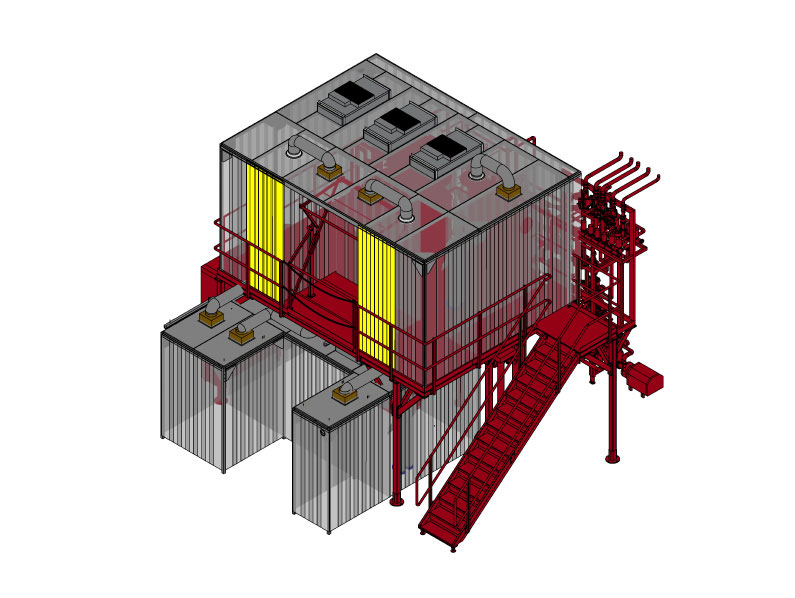

Through site surveys, detailed CAD modelling and a close working relationship with L’Oreal, we successfully designed and installed cleanrooms to part and fully-enclose machinery - accommodating structural beams and bars both above and below the existing mezzanine level.

Due to the modular cleanroom construction and through careful design and planning, the installation around existing machinery caused minimum disruption and downtime for L’Oreal.

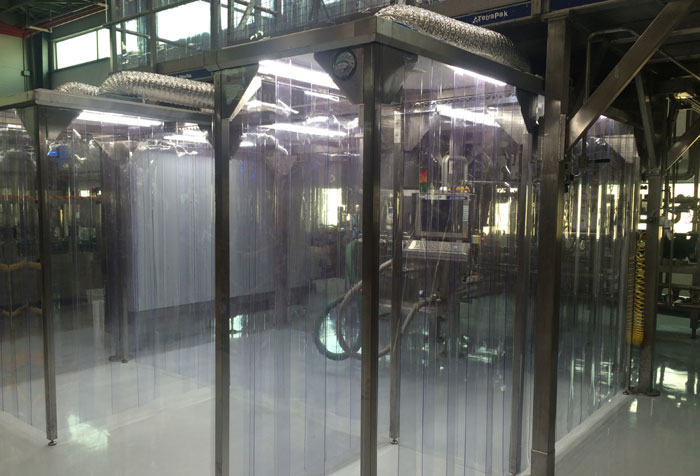

"Connect 2 Cleanrooms were very willing to understand our exact needs and were able to provide four modular soft wall cleanrooms to provide localised clean environments around the relevant existing equipment, in a very short time and with very little disruption to production during installation.

"The cleanrooms are perfectly integrated with the equipment, looking as though they were designed together with the equipment from the very beginning, and fully compliant with the required regulations. Connect 2 Cleanrooms’ strong technical expertise has allowed us to expand our business but it is their excellent customer service all throughout the project that has made them stand out as a supplier of choice for us."

Plant Director, L'Oreal
