Angstrom Technology deliver 340m² solid-state battery production cleanroom for Ilika
Angstrom Technology has completed a new 340m² cleanroom facility for Ilika PLC achieving ISO 14644-1:2015 classes 6, 7, or 8, according to the sensitivity of the process. Consistent cleanroom temperature and humidity control creates a stable environment suitable for battery production.
Key facts
Designed and built in 6 months
From order to handover
8 zones
Process-built layout with 3 process areas and 5 ancillary zones
ISO Classes 6-8
Plus 20±1°C and 45%RH±10%RH in all classified areas
Principal contractor
Construction was undertaken during the COVID-19 pandemic
The client
Angstrom Technology has completed a new 340m2 ISO cleanroom for Ilika PLC at its 1600m2 Stereax—millimetre-scale solid-state batteries—manufacturing facility.
The cleanroom is a key element of Ilika’s new facility as it scales up Stereax, to become the first volume manufacturer of micro-batteries for next-generation MedTech and IoT in the UK.
Acting as principal contractor, Angstrom delivered the cleanroom facility—from order to handover—in 6 months, between February and August 2021. This schedule was achieved, despite COVID-19 restrictions and disruption, through high levels of communication and collaboration.
Angstrom Technology carried out daily project management meetings with Ilika, and weekly steering group meetings with a multi-disciplinary team, to ensure all aspects of operations and process were taken care of. Plus, Angstrom’s Site Project Lead, gave weekly tours to Ilika’s CEO, CFO, and CSO to keep senior management up to date on the progress at the site.
Process-built layout
The new cleanroom will enable Ilika to manufacture its Stereax micro-batteries to the desired reliability, yield, and quality, to give its clients a reliable and top-quality product.
The project involved the design and build of the cleanroom, with eight zones—three main process areas and five ancillary zones—to provide segregated spaces for various process activities.

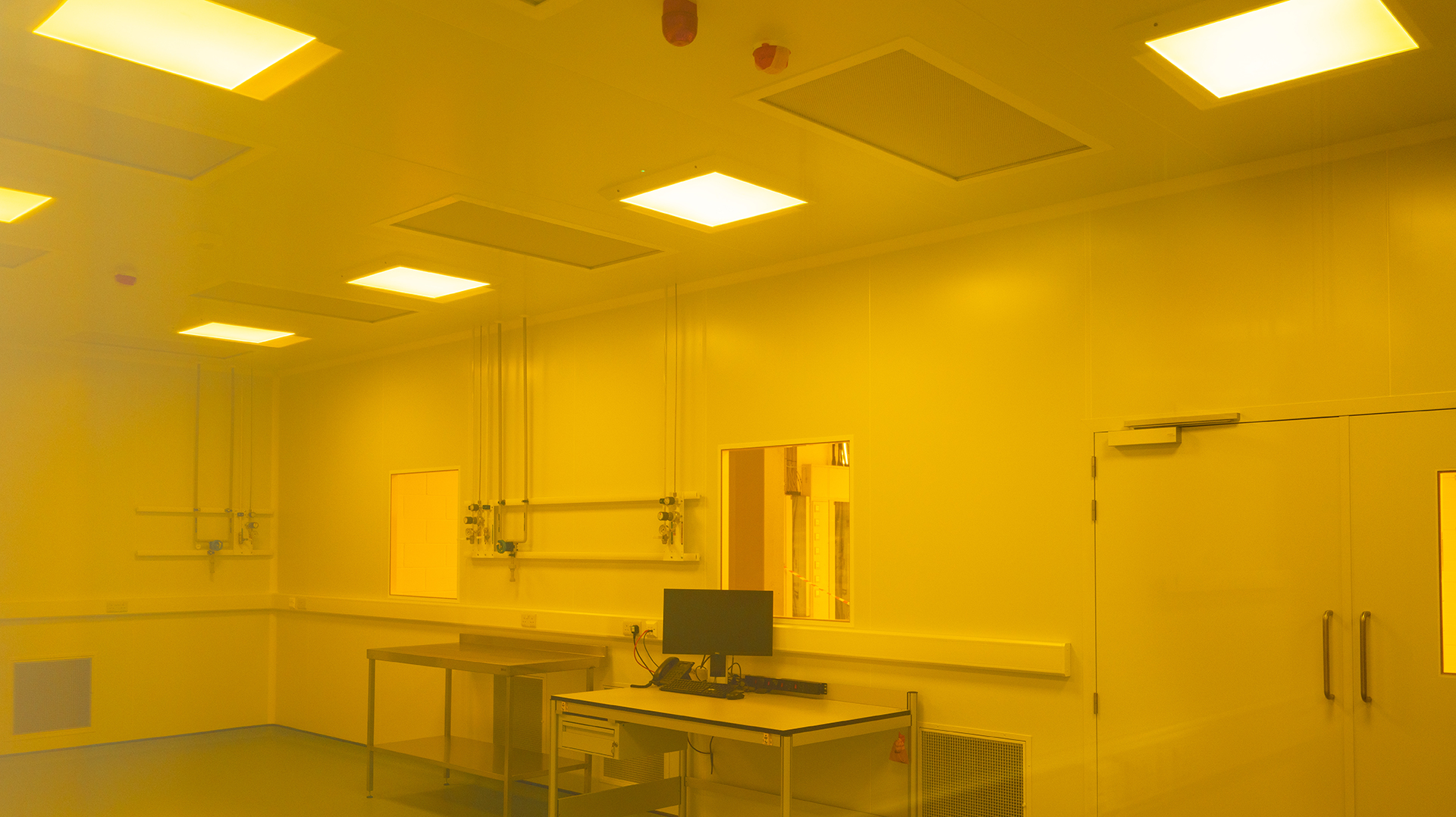

You enter the cleanrooms through an ISO class 8 changing room into the ISO class 7 dry etching zone. There are then three routes. You can then either enter into the ISO class 8 chase zone, the ISO class 6 photolithography (wet etching) zone, or through the ISO class 7 tool 1 processing zone into the ISO class 8 semi cleanroom. From the semi cleanroom, you can access the unclassified corridor and cleaning room. Some machinery crosses zones and so apertures were created to profile walls around the specialist equipment.
The batteries are created on the surface of a wafer by layering semiconductive materials in intricate patterns. Each layer is part of a step and it takes over 60 steps to achieve the exact electrochemistry. The battery needs to move back and forth between the zones, so an optimised layout was critical to achieving people and product transfer.

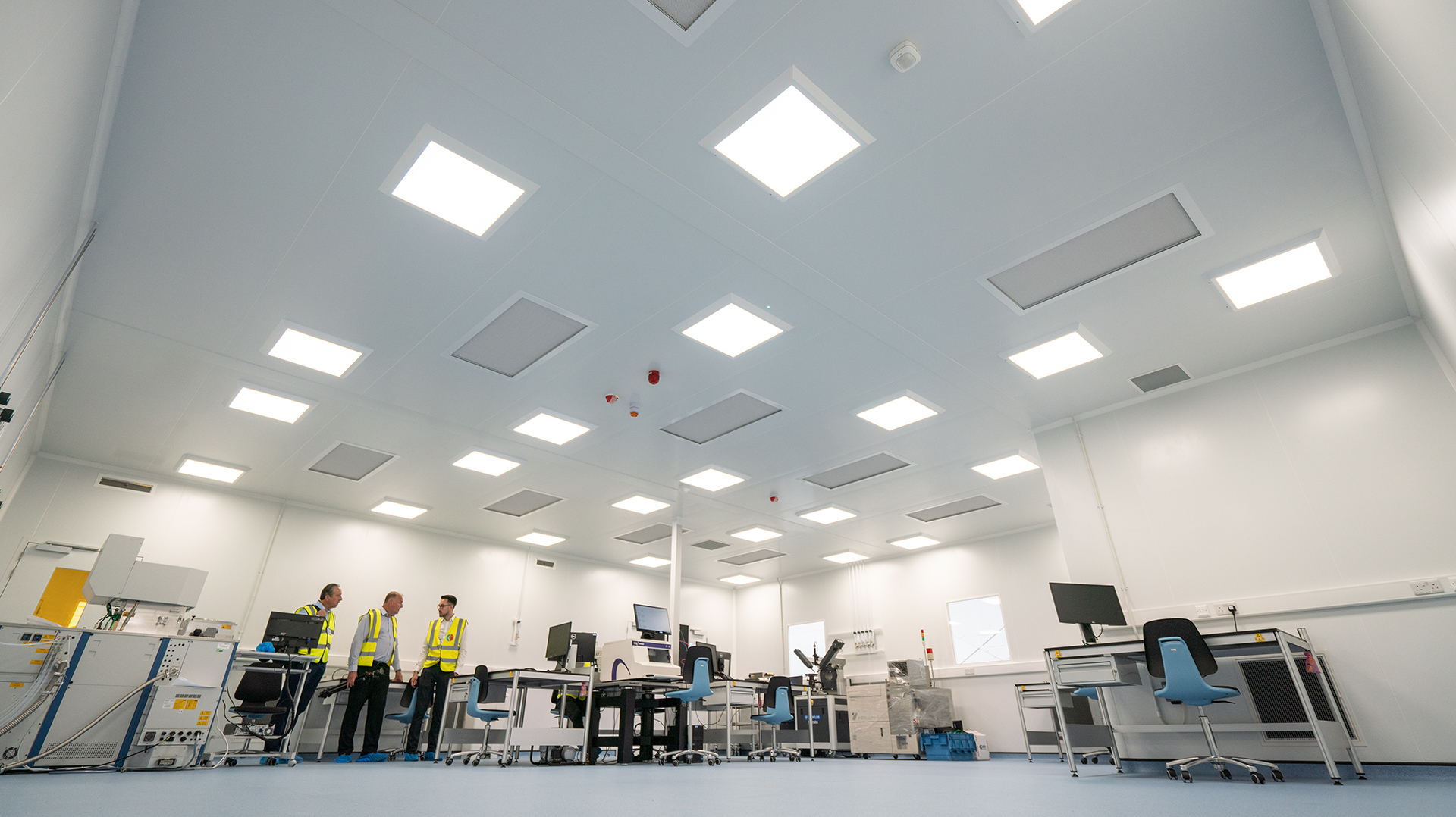

The cleanroom
The decentralised HVAC system controls the particle concentration in zones to achieve ISO 14644-1:2015 classes 6, 7, or 8, according to the sensitivity of the process. A consistent temperature range of 20±1°C and a humidity range of 45%RH±10%RH is achieved throughout the classified areas, with the photolithography zone benefitting from tighter tolerances. This stringent control within defined tolerances creates a stable environment that is appropriate for the advanced materials utilised.

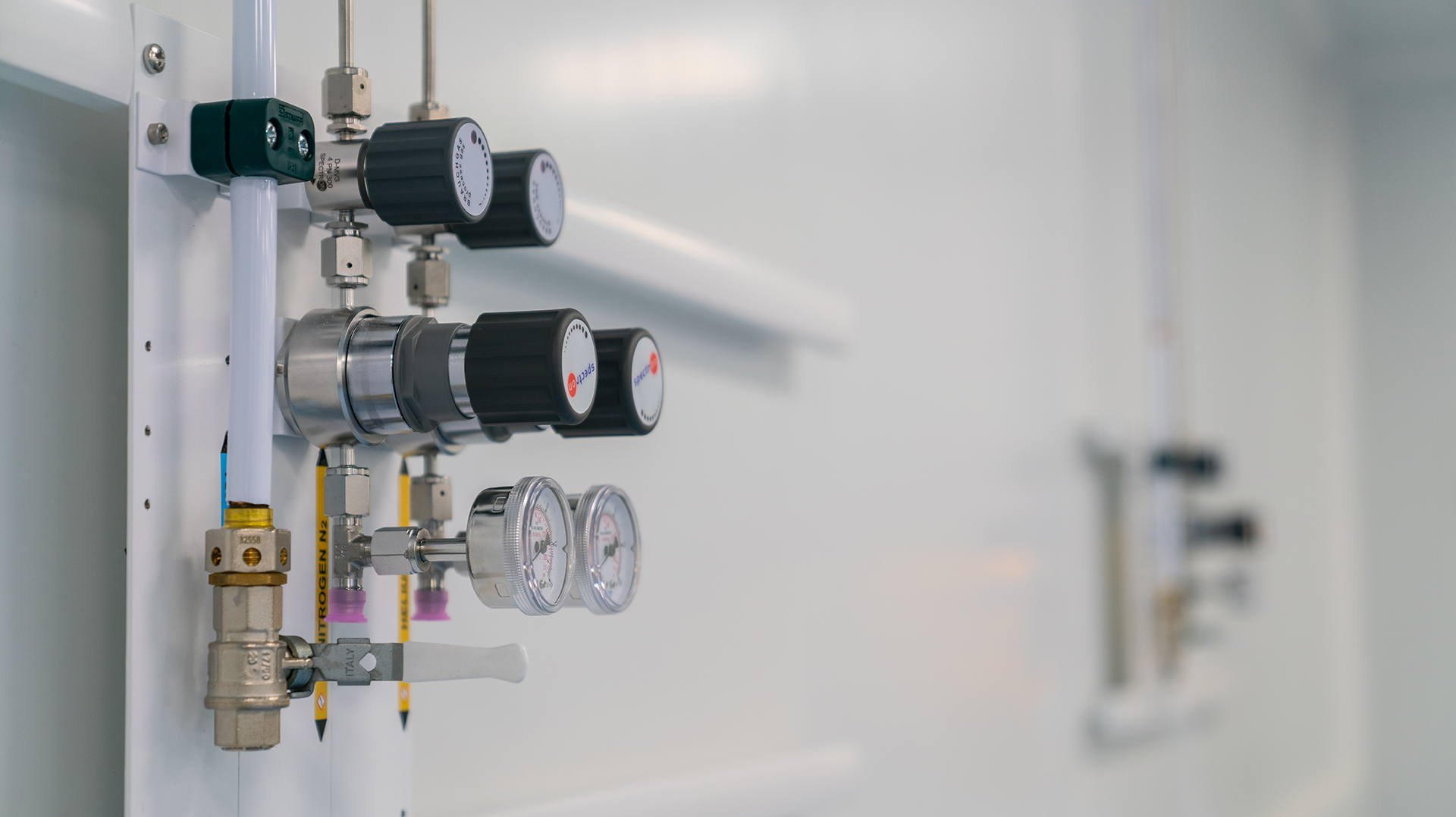

Part of the project scope included the supply of process vacuum, clean dry air, process gas (including helium, argon, and nitrogen), DI water distribution, and gas detection. Angstrom worked with specialist contractor MicroGas, who designed the process installation to deliver the services to the critical points of production.
With regards to our experience of working with Angstrom, we have at all times found interaction with Angstrom to be professional, friendly and collaborative. We’ve had multiple external vendors commenting on the high quality and smart look of our new cleanroom facility. Angstrom have achieved a design and build in a very aggressive timescale and have produced a fantastic facility. Angstrom have also provided ongoing support for consumables, cleanroom furniture and cleaning supplies.
