High-purity pipe fabrication cleanroom with ISO 4 pods
AE Global is a mechanical and electrical contracting specialist. Amongst its services is the fabrication of high-purity orbital, stainless steel pipe, for pharmaceutical and medical industries, and PVC pipe for the semiconductor industry.
A custom-built ISO cleanroom from Angstrom Technology was recommended to AE Global by another company in the industry.
Key facts
ISO Class 6 with Class 4 Zones
ISO Class 4 at the critical points of production
Process-built layout
Fully-enclosed prep and weld pods use 100% coverage of ULPA filtration
5 process-compliant zones
Process-built layout with weld zone, prep zone, 2 pods and a change area
Cleanroom LED lighting
Providing process-compliant lux levels
The client
AE Global is a mechanical and electrical contracting specialist. Amongst its services is the fabrication of high-purity orbital, stainless steel pipe, for pharmaceutical and medical industries, and PVC pipe for the semiconductor industry. Due to the nature of the product and its intended use, cleanroom production is required.
The project
The company had two cleanrooms at its site in Derry, N.I.—one portable and one traditional. However, due to issues related to their age, the company decided to decommission these and begin a new cleanroom design and build project. A custom-built ISO cleanroom from Angstrom Technology was recommended to AE Global by another company in the industry.
The cleanroom

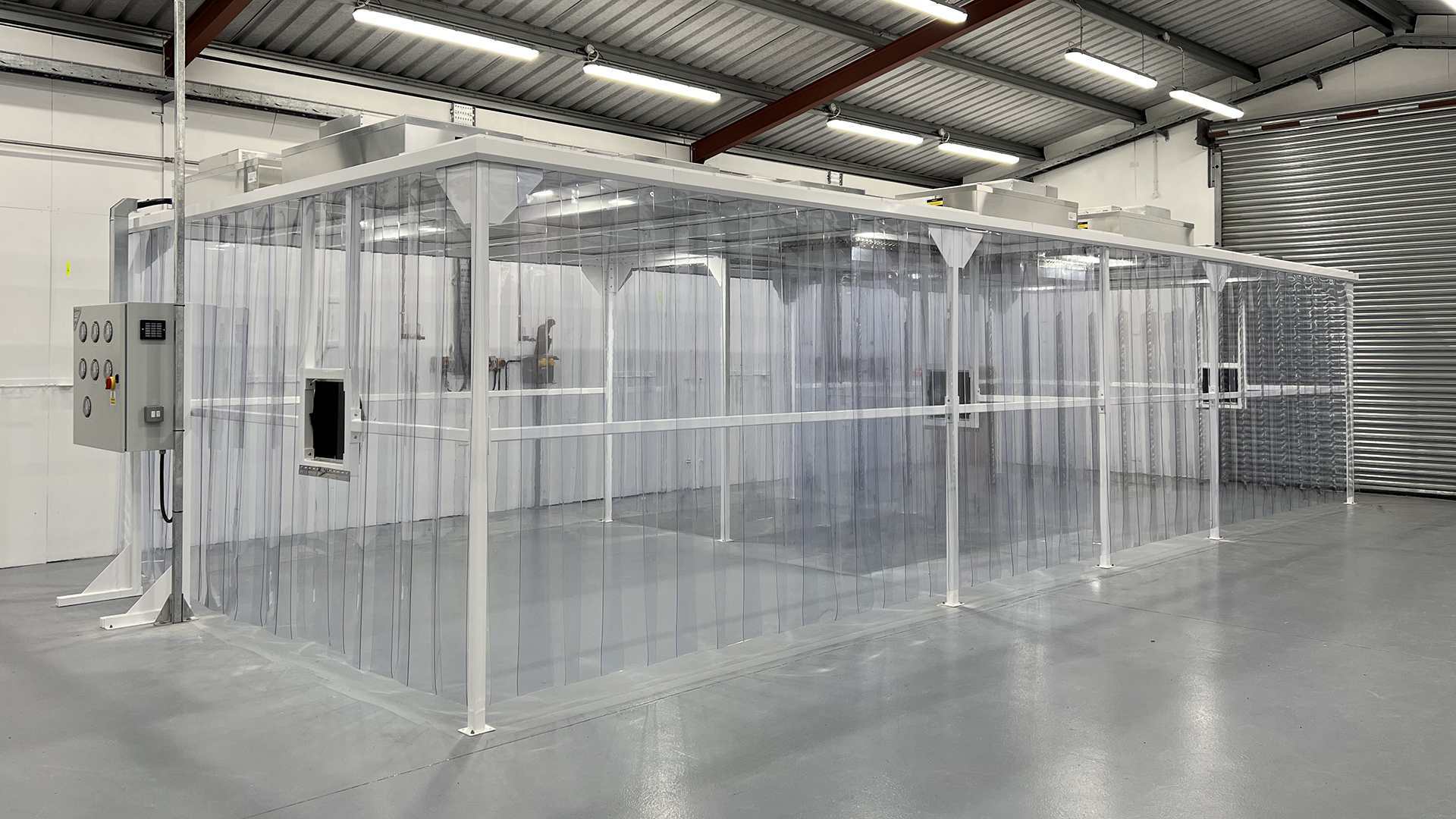

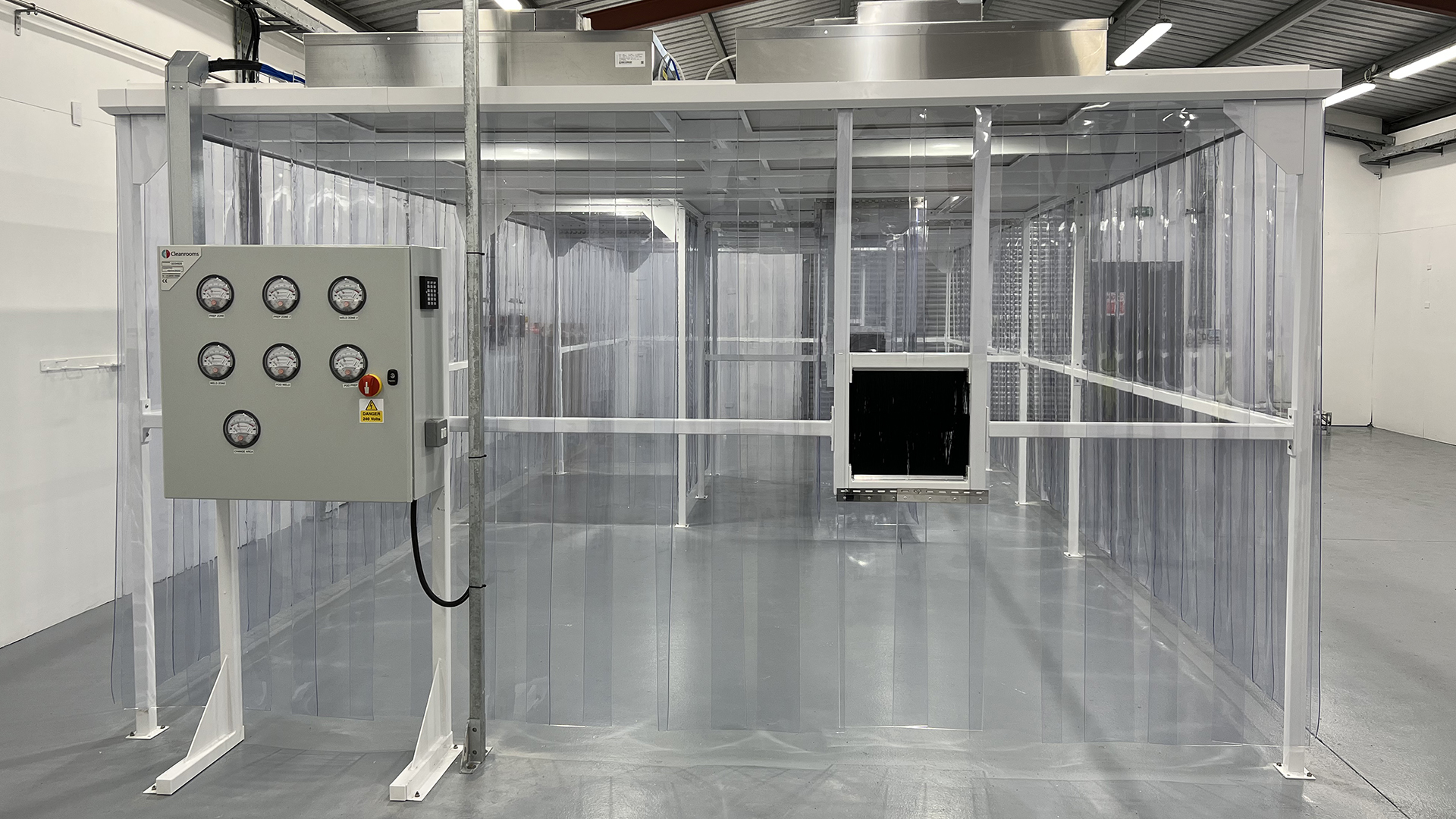

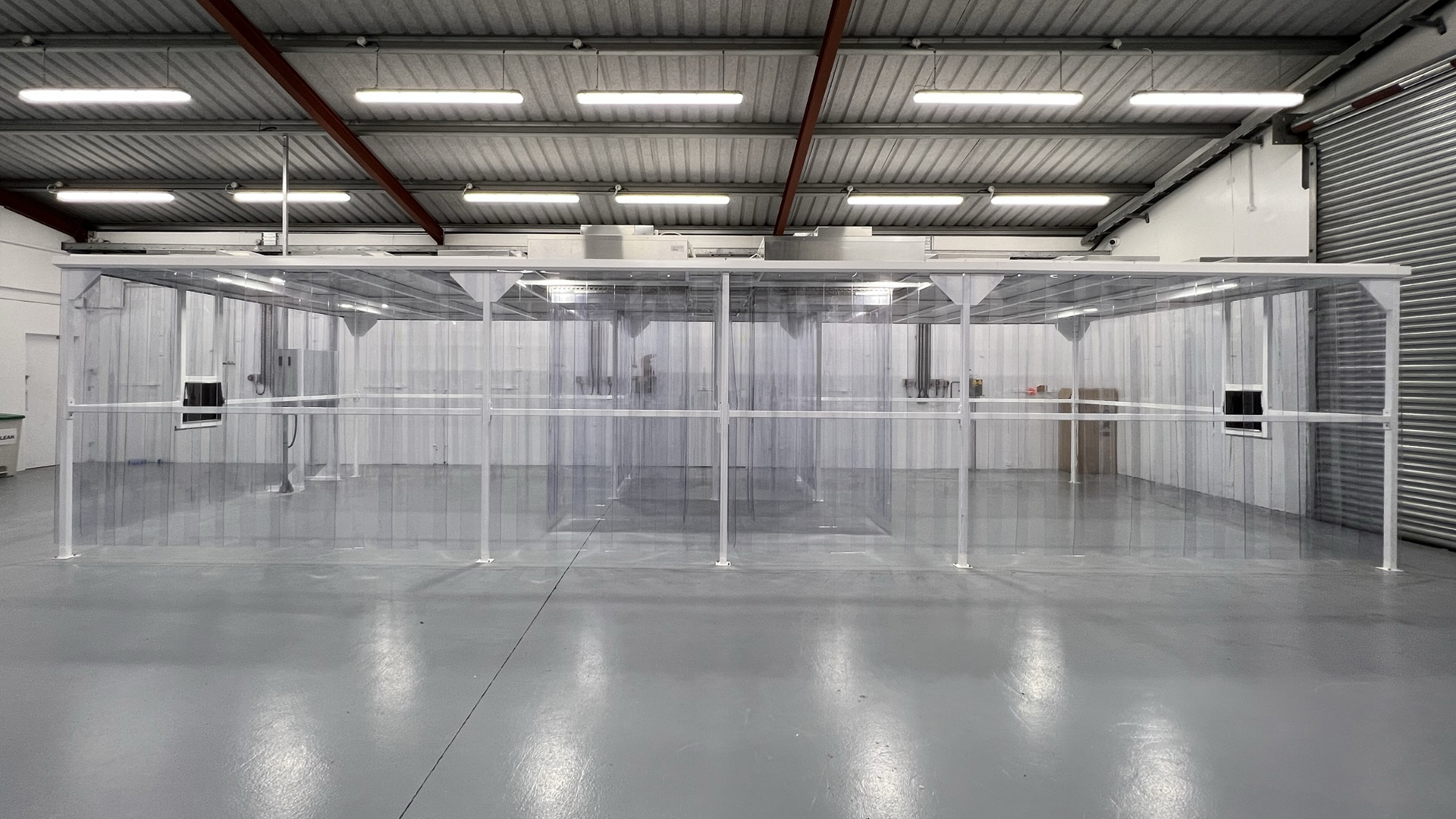

Angstrom designed and built a 40m² cleanroom with 5 zones to create designated spaces for separate fabrication processes. As well as an ISO 14644-1 Class 8 change area, the room features an ISO 6 weld zone and an ISO 6 prep zone. Each of these zones features an ISO 4 pod with 100% coverage of ULPA filtration at the critical points of production.
It was important to AE Global that the cleanroom is of a modular design. The softwall modular construction delivers a high degree of flexibility as it can be reconfigured, extended, or moved if its fabrication needs change dramatically.
The project ran smoothly and Angstrom arrived, installed, and validated within the planned build schedule.
With the new cleanroom, we have been able to streamline our processes to further align with our clients’ expectations. This will allow us to access a wider market with our processes and product, to attract more clients. With current orders, we hope to have the costs associated with the new clean room and the preparation of the cleanroom area, recouped within the next 6-9 months.
Angstrom Technology communicated well throughout the process and the professionalism of its staff— office & site—stood out during the build.
